Connecting VMware ESX to LeftHand's virtual storage appliance

In this tip, we continue the discussion and offer step-by-step instructions for connecting LeftHand's VSA iSCSI SAN to ESX Server. (These instructions apply to any iSCSI SAN to which you can connect, including connecting VMware ESX Server to another iSCSI target or SAN on your network.)

Connecting VMware ESX with the LeftHand Networks virtual storage appliance (VSA)

1. In the VMware Infrastructure Client (VI Client), select the ESX server you want to connect with the VSA iSCSI SAN and click on the Configuration tab. In the Hardware menu box, select Networking. Add the VMkernel port, which is required for iSCSI (if you use ESXi, you can skip this step). Note below that I have the VMkernel and management network port already created on the ESXi server:

   [IMAGE]
   Click to enlarge.

2. Next, click on Storage Adapters in the Hardware menu box, find the iSCSI Software Adapter and click Properties.

   [IMAGE]
   Click to enlarge.

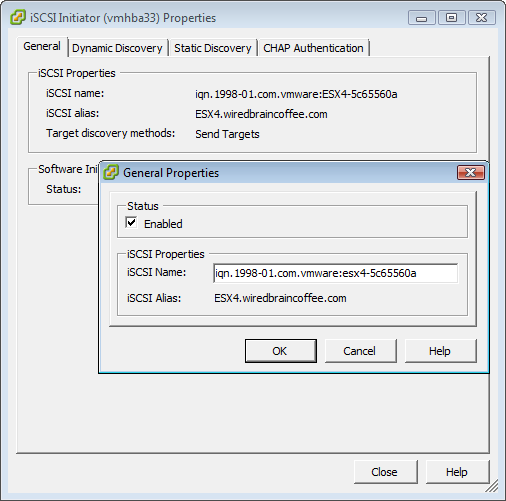

   Click on Configure, check the Enabled checkbox under Status, click OK, and then click Close.

   [IMAGE]
   Click to enlarge.

3. In the iSCSI Properties window, click on the Dynamic Discovery tab. Click Add to add a new iSCSI target. Enter the IP address of the VSA cluster -- not the VSA server -- and click OK, then Close. Re-scan the iSCSI targets.

   [IMAGE]
   Click to enlarge.

4. Now go return to the Hardware menu box in the VI Client and open Storage Adapters. You should see the new LeftHand VSA iSCSI volume (see below).

   [IMAGE]
   Click to enlarge.

   Note the 27 GB volume that we created from the 30 GB ...
